Pick-to-Light Hardware

Pick-to-Light-Hardware consists of controllers, compartment displays, mounting rails, terminals and wiring.

Pick-to-Light-displays

Height 50 mm
PTF-L-7 - Pick-to-Light for narrow storage compartments

PTF-L-7

Narrow, simple LED display.

Execution:43 x 50 mm, 2 x 7-colour LED
Options:Acknowledgement via touch function by swiping the upper LED (also possible with gloves). Sensor Up/Down for access detection
Areas of application:Sorting stations, assembly tables, removal of individual items from narrow compartments, aisle displays and signal lights without operation.
>> learn more about PTF-L-7
PTF-L-6 - Pick-to-Light Module without display. LED and button only.

PTF-L-6

Simple LED display with acknowledgement button.

Execution:70 x 50 mm, 2 x 7-colour LED, robust acknowledgement button, F button for special functions
Options:Sensor Up/Down for access detection
Areas of application:Sorting stations, assembly tables, removal of individual items from narrow compartments, replenishment.
>> learn more about PTF-L-6
PTF-L-5 - Pick-to-Light Display with large sensor

PTF-L-5

Simple LED display with large sensor.

Execution:105 x 50 mm, 1 x 7-colour LED, large sensor with range up to 180 cm, robust acknowledgement button, F button for special functions
Options:none
Areas of application:Pallet racking for large parts where removal is to be detected automatically.
>> learn more about PTF-L-5
Pick to Light Hardware

PTF-ZCTRL2

Modern information display with touch screen operation and colour display.

Execution:224 x 50 mm, 2 x 7-colour LED, plus/minus keys, colour touch screen, F-key for special functions, robust acknowledgement button
Options:LAN, USB, RS232. Connection of scanner or RFID reader possible
Areas of application:Info display, zone display or as a controller on the Pick-by-Cart or Pick-by-Frame.
>>> Learn even more about PTF-ZCTRL2
Pick to Light Display with OLED display

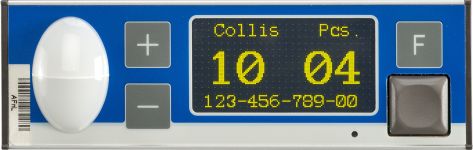

PTF-OL-1

Modern storage compartment display with OLED technology. Lots of information at a glance.

Execution:145 x 50 mm, 2 x 7-colour LED, plus/minus buttons, OLED display, F button for special functions, robust acknowledgement button
Options:Sensor Up/Down for access detection
Areas of application:Picking, where other information besides the withdrawal quantity must be displayed. Here, for example, the number of collis, the number of individual items and the item number.
>>> learn more about PTF-OL-1
PTF-3N-4 Pick-to-Light Display with three-digit display and buttons

PTF-3N-4

Standard display with 3-digit number of pieces.

Execution:130 x 50 mm, 2 x 7-colour LED, 3-digit quantity display, plus/minus keys, robust acknowledgement key, F-key for special functions
Options:Sensor Up/Down for access detection
Areas of application:Universal display for many applications with quantities up to 999.
>> learn more about PTF-3N-4
PTF-4N-4 Pick-to-Light Display with 4-digit display

PTF-4N-4

Display with 4-digit menu.

Execution:170 x 50 mm, 2 x 7-colour LED, 4-digit quantity display, plus/minus keys, robust acknowledgement key, F-key for special functions
Options:Sensor Up/Down for access detection
Areas of application:Universal display for many applications, with display of packaging units, e.g. "U 34".
>> learn more about PTF-4N-4
PTF-6N-1 Pick-to-Light Module with 6-digit display

PTF-6N-1

Information display with 6-digit numerical display.

Execution:212 x 50 mm, 1 x 7-colour LED, 6-digit numerical quantity display, plus/minus keys, robust acknowledgement key, F-key for special functions
Options:Acoustic tone (beep)
Areas of application:Display of order numbers or other information in the picking zone.
>> learn more about PTF-6N-1
PTF-12M-1 Pick-to-Light Module with 12-digit matrix display and keys

PTF-12M-1

12-digit alphanumeric info display with scroll function.

Execution:256 x 50 mm, 2 x 7-colour LED, 12-digit alphanumeric display with scrolling text, plus/minus keys, robust acknowledgement button, F-key for special functions
Options:Sensor Up/Down for access detection
Areas of application:Display of order information and error messages in a picking zone.
>> learn more about PTF-12M-1
PTF-EP-1 Pick-to-Light Display with ePaper display and buttons

PTF-EP-2

Compartment display with graphic display on which additional texts, barcodes and QR codes can be shown.

Execution:145 x 50 mm, 2 x 7-colour LED, graphic display, plus/minus keys, robust acknowledgement button, F-key for special functions
Options:Sensor Up/Down for access detection, L-Touch, Red-Pointer, Digital-Input
Areas of application:Withdrawal points, where not only the withdrawal quantity but also other dynamic information must be displayed.
>> learn more about PTF-EP-2
PTF-4A-1 Pick-to-Light Display with 4-digit alphanumeric display

PTF-4A-1

Compartment display with 4-digit alphanumeric display.

Execution:170 x 50 mm, 1 x 7-colour LED, 4-digit alphanumeric display, plus/minus keys, robust acknowledgement button, F-key for special functions
Options:Signal tone (Beep)
Areas of application:Display for withdrawal compartments, where letters must also be displayed in addition to the withdrawal quantities.
>> learn more about PTF-EP-2
PTF-6A-1 Pick-to-Light Display with 6-digit alphanumeric display

PTF-6A-1

Compartment display with 6-digit alphanumeric display.

Execution:212 x 50 mm, 1 x 7-colour LED, 6-digit alphanumeric display, plus/minus keys, robust acknowledgement button, F-key for special functions
Options:Signal tone (Beep)
Areas of application:Display for withdrawal compartments where letters must also be displayed in addition to the withdrawal quantities. Suitable for Multi-Order-Picking on the withdrawal tray.
>> learn more about PTF-6A-1
PTF-3N-2 Pick-to-Light Display for vertical installation with 3-digit display and keys

PTF-3N-2

Vertical display with 3-digit display for pallets.

Execution:50 x 110 mm, 1 x 7-colour LED, 3-digit numerical quantity display, plus/minus keys, robust acknowledgement key, F-key for special functions
Options:none
Areas of application:The vertical display is used at pallet places or columns.
>> learn more about PTF-3N-2
PTF-4N-3 vertical Pick-to-Light display with 4-digit display and keys

PTF-4N-3

Vertical display with 4-digit display for pallets.

Execution:50 x 110 mm , 1 x 7-colour LED, 4-digit numerical quantity display, plus/minus keys, robust acknowledgement key, F-key for special functions
Options:none
Areas of application:The vertical display is used at pallet places or columns where additional information still has to be shown on the displays (e.g. "U 12" for 12 full cartons).
>> learn more about PTF-4N-3

Mini Series Displays

Height 25 mm
PTF-S3N-3 small Pick-to-Light display with 3-digit numeric display

PTF-S3N-3

Compact storage compartment display for withdrawal quantities up to 999 pieces.

Execution:101 x 25 mm, 2 x 7-colour LED, 3-digit numeric quantity display, plus/minus keys, robust acknowledgement button (no membrane keypad). The keys work capacitively and can also be operated with gloves.
Options:Sensor Up/Down for access detection
Areas of application:Small removal compartments at assembly points with small storage compartment width.
>> learn more about PTF-S3N-3
PTF-SL-3 small Pick-to-Light display without indicator.

PTF-SL-3

Compact storage compartment display without quantity display.

Execution:57 x 25 mm, 2 x 7-colour LED, robust acknowledgement button (no membrane keypad). The buttons are capacitive and can also be operated with gloves.
Options:Sensor Up/Down for access detection
Areas of application:Very small removal compartments at assembly points where the number of pieces is not relevant (e.g. always 1 piece).
>> learn more about PTF-SL-3

Expert tip:
How to exchange the trade ads if needed?
Read more in the article: Replacing the compartment displays.
